產品規格

1. Switch Rating : 0.1A 125VAC

2. Leakage : 500 megaohms min. between contacts to ground

3. Operating Temperature : 105°C (221°F)

4. Leads :

Insulated appliance wire 20 AWG. stranded 150°c .032"(0.81mm) thick insulation

UL NO. 3321.

5. 100% electrical continuity test required on each harness.

6. Switch to turn freely without noticeable noise.

7. Applications Product : Stove

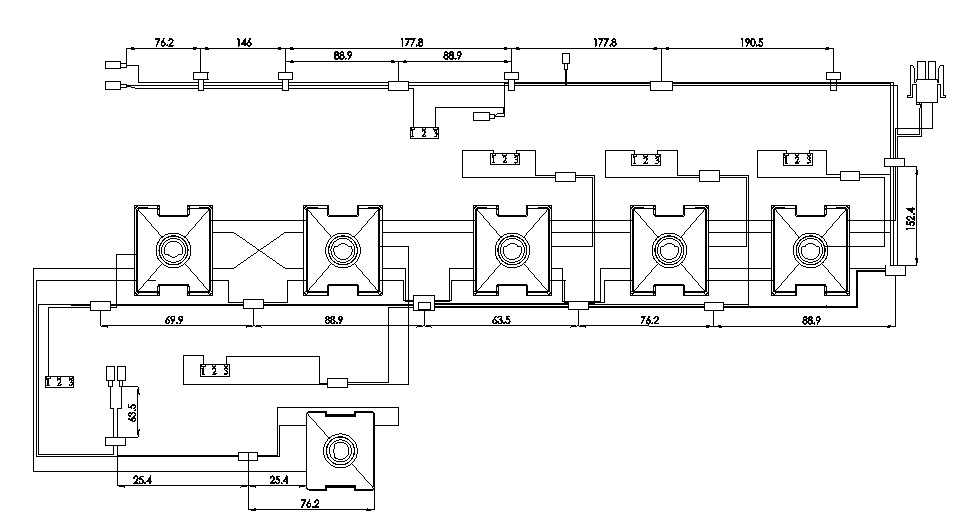

產品尺寸 (mm)
