產品規格

1. Contact Rating : 21A, 42VDC

2. Initial Contact Resistance : 5mΩ

3. Insulation Resistance : 500MΩ

4. Life cycles : 100,000 cycles

5. Terminal to Terminal Dielectric Withstand Voltage : 500VAC-1 minute

6. Terminal to Enclosure Dielectric Withstand Voltage : 500VAC-1 minute

7. Applications Product : Drill, Chain Saw, Hammer Drill

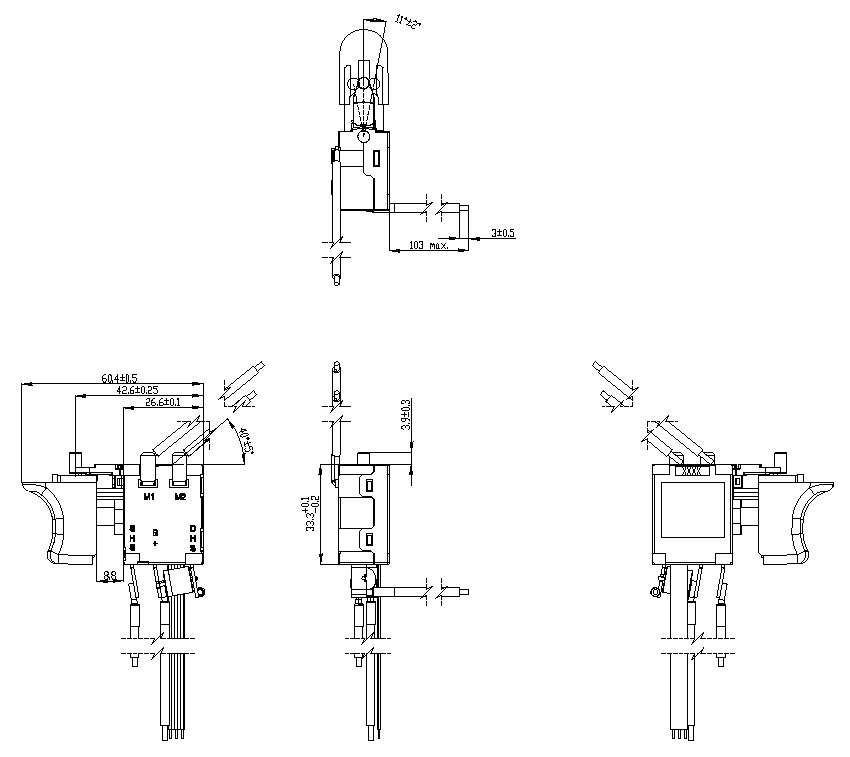

產品尺寸 (mm)
