產品規格

1. Contact Rating : 20.5A ,24VDC (UL& C-UL)

2. Initial Contact Resistance : 30mΩ(MAX.)

3. Insulation Resistance : 100MΩ(MIN) 500 VDC

4. Operation Force : 20±3 N

5. Life cycles : More than 100,000 cycles

6. Terminal to Terminal Dielectric Withstand Voltage : 500 VAC-1 minute

7. Applications Product : Drill, Chain Saw, Hammer Drill

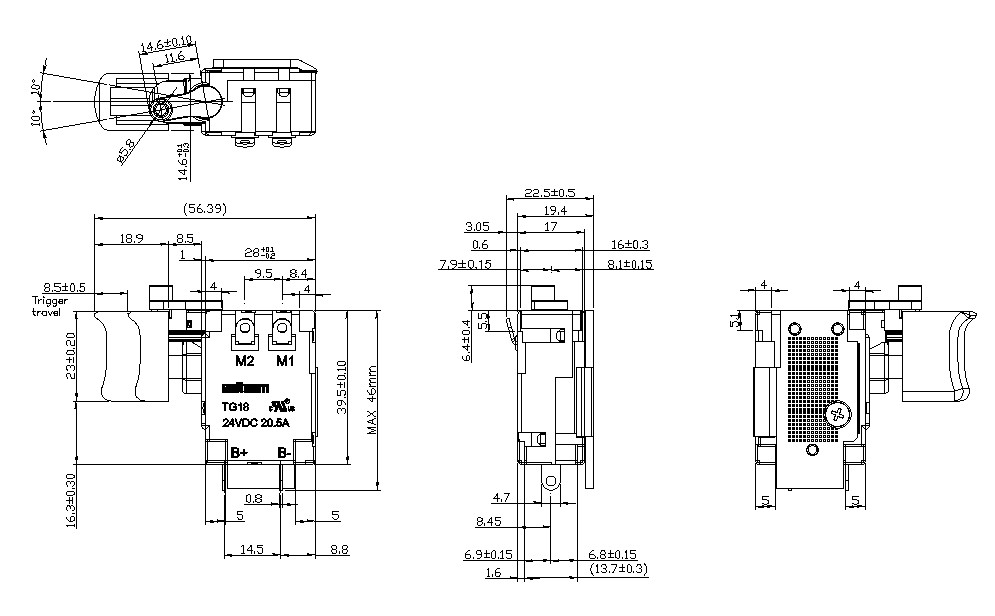

產品尺寸 (mm)
