產品規格

1. Contact Rating : 16(4)A 250V ~ T85

                            15A 250VAC ~ T65

2. Contact Resistance : 20mΩ (MAX)

3. Insulation Resistance : 100MΩ (MIN) 500V DC

4. Dielectric Strength : 2000V AC-1minute

5. Electric Life : 10,000 cycles

6. Operating Force : 800 ± 300gram

7. Applications Product : Desktop PC, Displayer, Server, Garbage Pulper, Projector

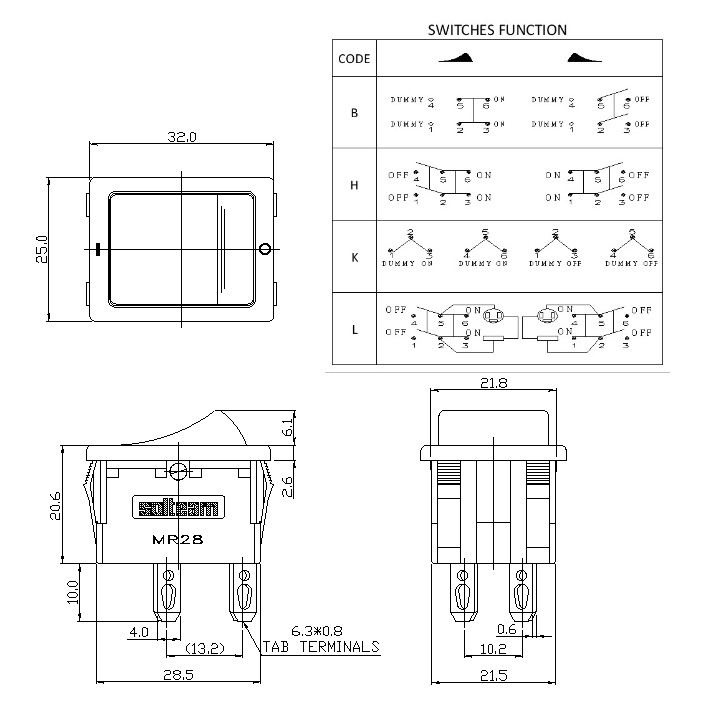

產品尺寸 (mm)
