產品規格

1. Contact Rating : 15A 125VAC

                             7.5A 250VAC

                            10(4) A 250V~

                            16(6) A 250V~

2. Initial Contact Resistance : 20mΩ (MAX)

3. Insulation Resistance : 100 MΩ (MIN) 500V DC

4. Operation Force : 900 ± 200g

5. Life cycles : 50,000 cycles

6. Terminal to Terminal Dielectric Withstand Voltage : 2000V AC-1minute

7. Applications Product : Stove, Dishwasher, Paper Shredder, Grinder

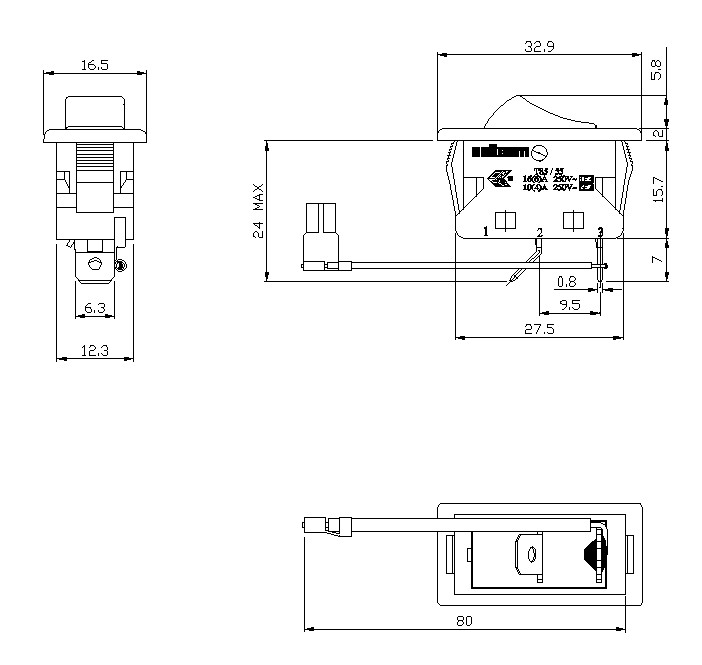

產品尺寸 (mm)
