產品規格

1. Contact Rating : 12A  125/250VAC T85

                            10(1)A 250V ~ µ T85

2. Contact Resistance : 20 mΩ MAX

3. Insulation Resistance : 500 MΩ (MIN) 500V DC

4. Dielectric Strength : 2000V AC-1 minute

5. Electric Life : 300 cycles

6. Operating  Force : 500 ± 200gram

7. Applications Product : Desktop PC, Business Machines

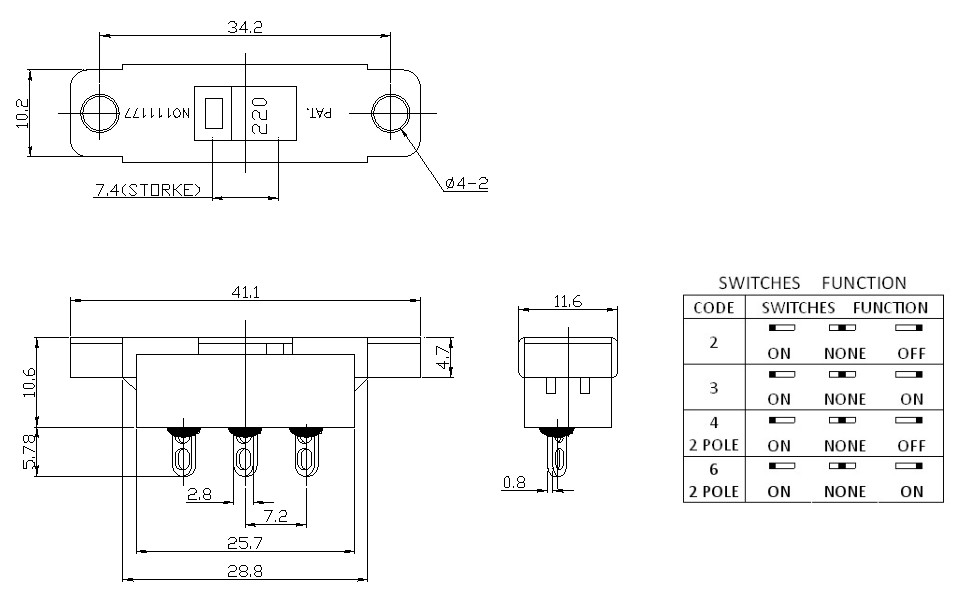

產品尺寸 (mm)
